Cable Harness Tester

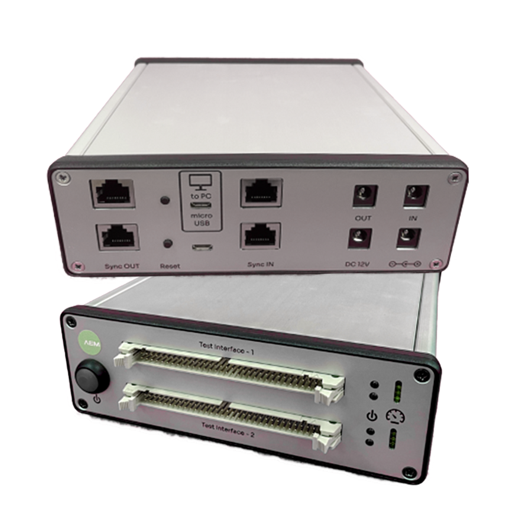

The Cable Harness Tester AHT-128 offers 128 test points of connectivity and resistance test. Multiple testers can be cascaded to test up to 1024 points. It is a compact and cost-effective PC controlled tool. Cable Harness Tester Manager PC software controls the AHT-128 units to perform testing, allows configuration and setting of test limits, and provides test reports.
AHT - 128
Features
- Auto Learn
- Test 128 points and expandable to 1024 points
- Customisable to test 5000+ points
- Load CSV – Customisable
- Connectivity measurement
- Open / Short detection
- Resistance measurement
- Crossed Wires, and Mis-Wires
- Pin-to-Pin connectivity
- Management and recording
- Custom Integration to Bar Code Scanner
Features
- Auto Learn
- Test 128 points and expandable to 1024 points
- Customisable to test 5000+ points
- Load CSV – Customisable
- Connectivity measurement
- Open / Short detection
- Resistance measurement
- Crossed Wires, and Mis-Wires
- Pin-to-Pin connectivity
- Management and recording
- Custom Integration to Bar Code Scanner

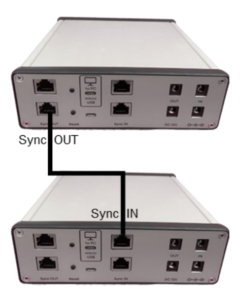

Expandable to Multiple Units

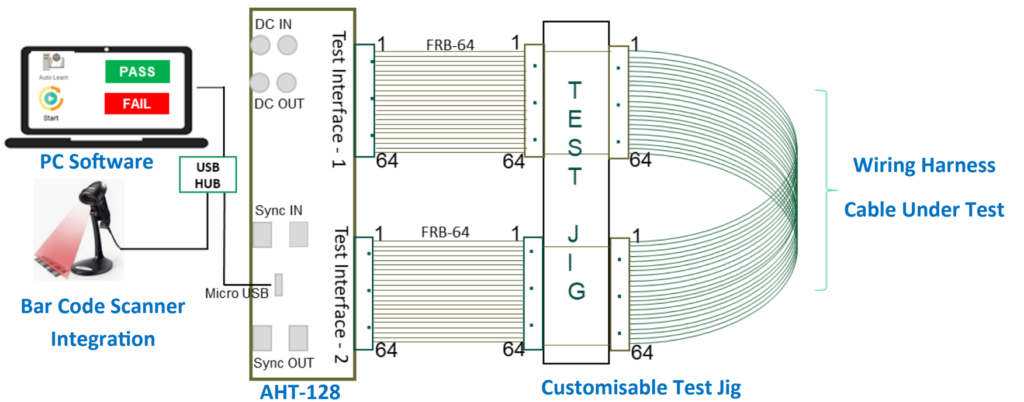

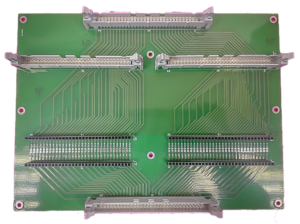

WH - Test Jig

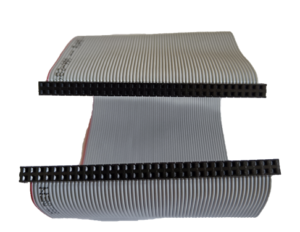

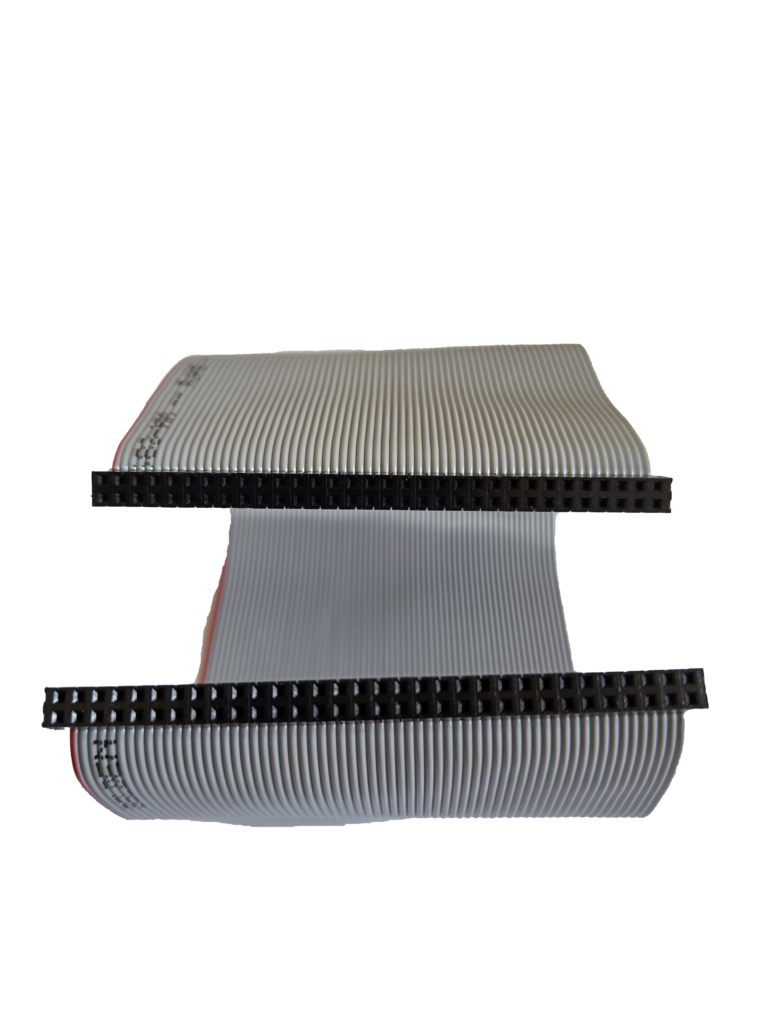

FRC - 64
Expandable to Multiple Units
WH - Test Jig
FRC - 64
Product Specifications
Values
TEST POINT
TEST PARAMETERS
TEST SIGNAL CHARACTERISTICS
RESISTANCE MEASUREMENT
COMPUTER REQUIREMENTS
TEST TIME
USER INTERFACE
POWER
SIZE
128 points (Expandable to 1024 points ), Customisable to 5000+ points
Continuity, Resistance
Excitation voltage : 1.7V max, Current
Injection : 3µA to 1.7A
0.1 Ω to 100 Ω, ±0.1 Ω
Windows 7 or later
200 msec per port
Desktop Application & USB Interface
12 VDC, 5A
56mm (h) x 170mm (w) x 192mm (d)
Product Specifications
Values
TEST POINT
TEST PARAMETERS
TEST SIGNAL CHARACTERISTICS
RESISTANCE MEASUREMENT
COMPUTER REQUIREMENTS
TEST TIME
USER INTERFACE
POWER
SIZE
128 points (Expandable to 1024 points ), Customisable to 5000+ points
Continuity, Resistance
Excitation voltage : 1.7V max, Current
Injection : 3µA to 1.7A
0.1 Ω to 100 Ω, ±0.1 Ω
Windows 7 or later
200 msec per port
Desktop Application & USB Interface
12 VDC, 5A
56mm (h) x 170mm (w) x 192mm (d)
Part Number
Description
UOM
AHT—128
WH – Test Jig
Wiring Harness Tester kit:
1 x AHT – 128 Tester,
Micro USB cable,
1 x 64 point FRC cable,
USB thumb drive with AEM wiring harness PC software and power adapter.
Test Jig board with
connectors can be
customised based on
customer wiring harness
requirements.
SET
TBD
Part Number
Description
UOM
AHT—128
WH – Test Jig
Wiring Harness Tester kit:
1 x AHT – 128 Tester,
Micro USB cable,
1 x 64 point FRC cable,
USB thumb drive with AEM wiring harness PC software and power adapter.
Test Jig board with
connectors can be
customised based on customer wiring harness requirements.
SET
TBD
